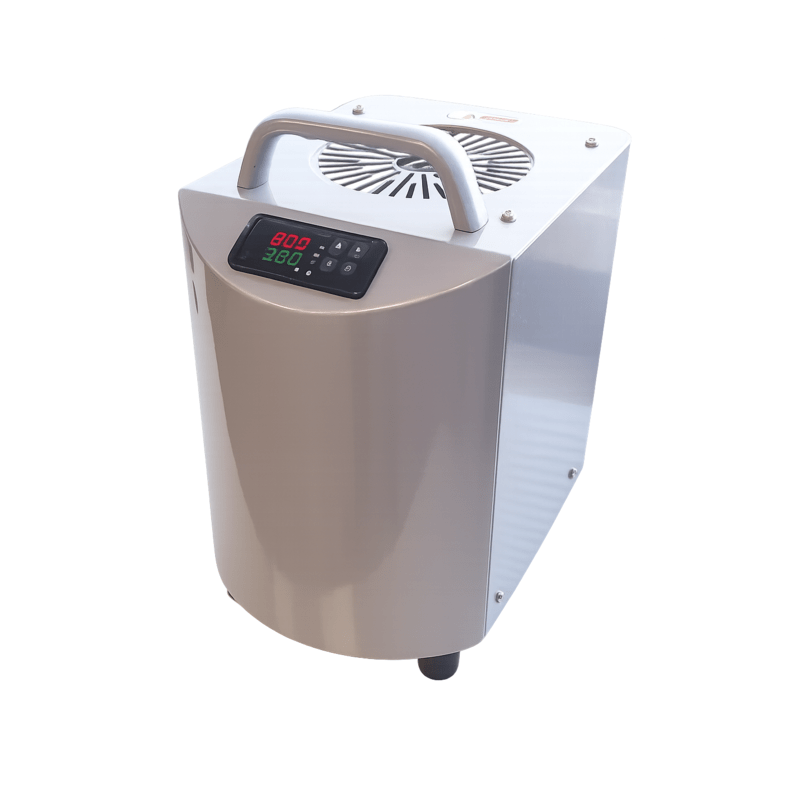

Dry well Temperature Calibrator LHC 75

Leyro portable temperature Dry well calibrator for calibrations of temperature between +40ºC…375ºC.  The dry well has a diameter of 27 mm and a depth of immersion of 120 mm.  It also has an easy and intuitive temperature controller with a resolution of 0,1 and an integrated PT 100 for reference temperature measurements.

Enquire here

This product is currently out of stock and unavailable.

Description

Leyro portable temperature dry well LHC 400 for temperature calibrations between +40 ºC… 375 ºC. With a stability of  ±0,05ºC, an uniformity of ±0,2 ºC and an accuracy of  ±0,3 ºC , it offers a versatile solution for calibrating thermocouples in all kind of industrial environments, offering excellent results and a fast response time. The LHC 75 is easy to use thanks to its compact and light design. Thanks to big size of the insert, it has a big drilling capacity and can calibrate a lot of thermocouples at the same time. Apart from the standard insert (A) you can choose different types of optional inserts, so the equipment can be adapted to any circumstances.

Technical Specs:
Download tech specs pdf

Additional information

Applications

Calibration labs, On-Site.
Testing Labs
Universities / R & D
Chemical / Pharmaceutical Industry
Food industry

Bullet Points

Temperature range +40 … 375 °C
Immersion depth 165 mm
Stability ±0.05 ºC
Uniformity ± 0.2ºC
Fast response time
